List and details of our products

DST Tools 5``, 7``, 9 5/8``

Surface test tree & Crossover 1

Slip joint & Crossover 2

Drill collar & Crossover

RD Circulating Valve & Crossover 4

Annular Pressure Operated Reclosable Multifunction Valve OMNI

LPRN TESTER VALVE (Op Pressure 1500 psi toopen) RIH in closed position

INSTREAM BUNDLE CARRIER Loaded with 4 ea EMR 350 deg F

HYDRAULIC JAR

FUL FLO HYDRAULIC BYPASS

SAFETY JOINT

7” RTTS PACKER

Perforation Joint

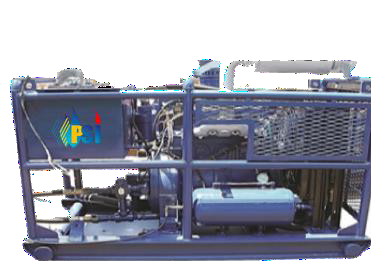

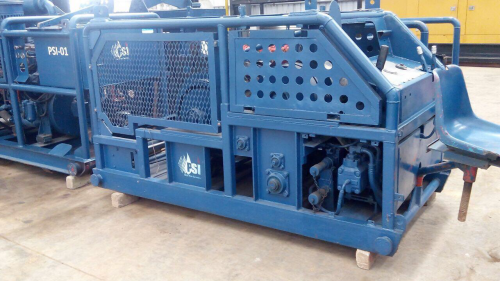

Slickline

WINCH SKID MOUNTED:
Single Drum
Double Drum

WIRE (Carbon Steel/Stainless Steel) size :
0.105
0.108
0.125
7/32”
monoconductor wire
Braided line

PRESSURE CONTROL EQUIPMENT:
Rating : 5000 Psi, 10.000 Psi,
15.000 Psi

Power Pack

120 HP, 100 HP, 90 HP, 80 HP, 60 HP

Skid Mounted Hydraulic Power Pack
Engine: PERKINS, DETROIT
BASIC WIRELINE TOOL
Weight Counter Indicator
Hay Pulley
Hydraulic Stuffing box
Lubricator
Wire line valve ( B.O.P )
Pump Tee
WIRELINE TOOL BOX C/W 5 1/2 BENCH VISE, B.O.P RACK AND LUBRICATOR RACK

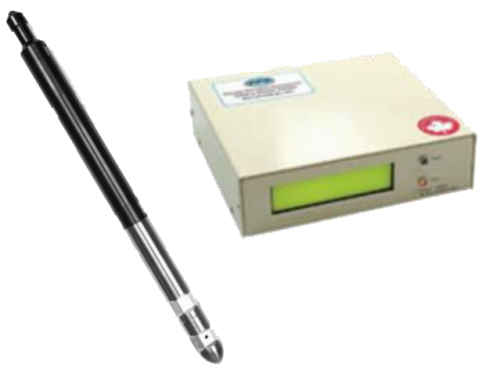

PPS26 Surface Read Out gauge

PPS25 Electronic Memory Gauge Pioneer

Petrotech Services
P max = 15000 Psi
T max = 350 degF
H2S Service

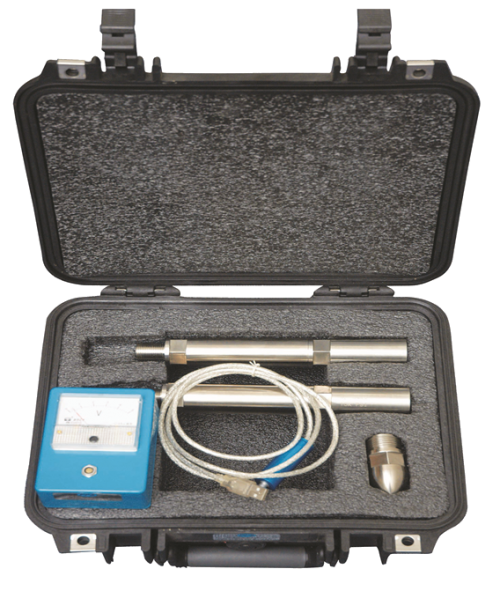

Electric Memory Record (EMR) is tools used for recording a pressure and temperatures on well hole

Transfer Pump

SPECIFICATION :
Capacity : 3500, 4500, 7500, 10.000, 15.000, 20.000 BBL/Day
Operating Temperature : 120 – 200 ºF
Discharge Pressure : 0 – 1000 psi

PUMP TYPE :
Multi stages, Centrifugal

PRIME MOVER :
Engine : Electric Motor (Elmot)

BRAND : Mercedez Benz, Mitsubishi, Detroit, Caterpillar, SIHI, Electra, Lowara

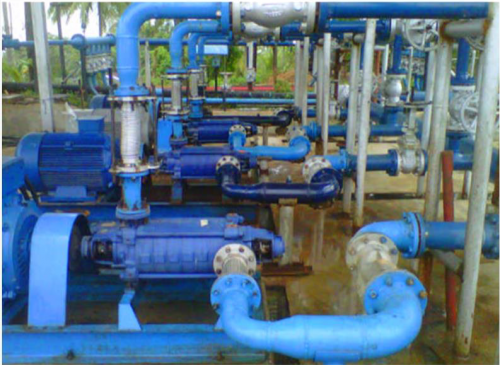

Water Injection Pump

SPECIFICATION :
Capacity : 3500, 4500, 7500, 10.000, 15.000, 20.000 BBL/Day
Operating Temperature : 120 – 200 ºF
Discharge Pressure : 0 – 550 psi

PUMP TYPE :
Multi stages 6 impeller

PRIME MOVER :
Engine : Electric Motor (Elmot)

BRAND : Marelli Motor, KSB

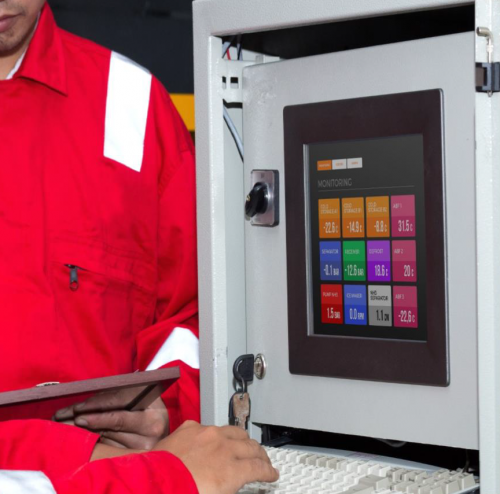

Bighorn Guard Data Acquisition Unit

Our Data Acquisition Unit provide a simpler way of monitoring. It provides an accurate data with real time monitoring and able to be accessed through anywhere.

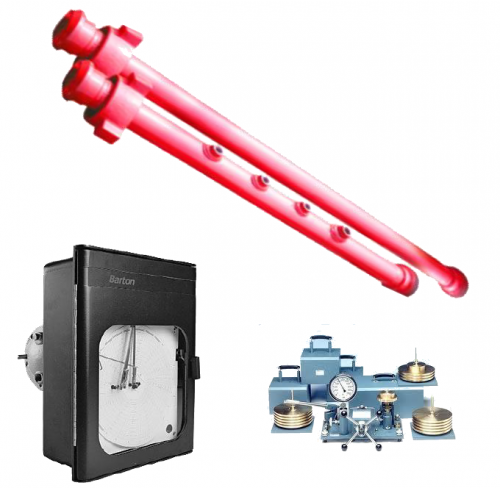

Data Header

3”, 6,000 psi W.P., 10,000 psi WP, 15,000 psi WP

Complete with temperature , Pressure gauges, Deadweight tester, Chemical injection, etc.

Test Tank

100 BBL & 200 BBL double compartment

Service : OIL / WATER
Content : OIL / WATER
Total Capacity : 100 BBL, 200 BBL
Material : A-36
Code : Spec.
INLET FLUIDS : 3” – 150# RFWN
OUTLET FLUIDS : 3” – 150# RFWN
OUTLET GAS : 3” – 150# RFWN

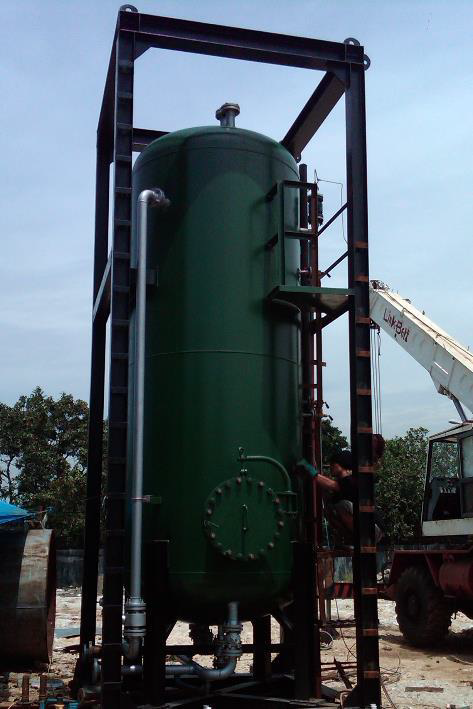

Storage Tank

200 BBL, 400 BBL & 500 BBL Single Compartment

Service : OIL / WATER
Content : OIL / WATER
Total Capacity : 200 BBL, 400 BBL, 500BBL
Material : A-36
Code : Spec.
INLET FLUIDS : 3”, 4” – 150# RFWN
OUTLET FLUIDS : 3”, 4” – 150# RFWN
OUTLET GAS : 3”, 4” – 150# RFWN

Coil Tank

400 BBL & 500 BBL

Service : HEATING OIL / WATER
Content : OIL / WATER
Total Capacity : 400 BBL, 500 BBL
Material : A-36
Code : Spec.
INLET FLUIDS : 3”, 4” – 150# RFWN
OUTLET FLUIDS : 3”, 4” – 150# RFWN
OUTLET GAS : 3”, 4” – 150# RFWN

Surge Tank

Pressurized Tank 100 BBL

Service : 100 psig, OIL / WATER
Content : OIL / WATER
Total Capacity : 100 BBL
Material : A-36
Code : Spec.
INLET FLUIDS : 3”, 4” – 150# RFWN
OUTLET FLUIDS : 3”, 4” – 150# RFWN
OUTLET GAS : 3”, 4” – 150# RFWN

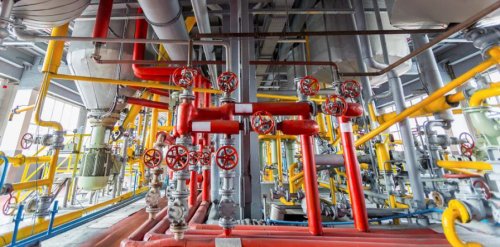

Piping System

3”, 6,000 psi WP    : FIG 602

3” 10,000 psi WP   : FIG 1002

3” 15,000 psi WP   : FIG 1502

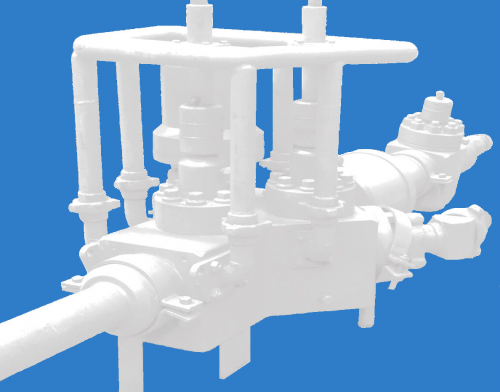

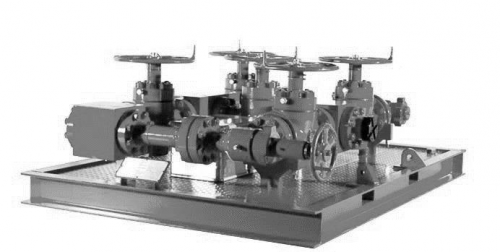

Choke Manifold

WORKING PRESSURE 5.000 PSI
WORKING TEMPERATURE 250-250°F
SERVICES H2S
STANDARD NACE MR017
VALVE TYPES PLUG
CHOKE TYPES ADJUSTABLE AND POSITIVE
INLET 3” FIG 602
OUTLET 3” FIG 602

WORKING PRESSURE 10.000 PSI
WORKING TEMPERATURE 250-250°F
SERVICES H2S
STANDARD NACE MR017
VALVE TYPES PLUG
CHOKE TYPES ADJUSTABLE AND POSITIVE
INLET 3” FIG 1502
OUTLET 3” FIG 1002

WORKING PRESSURE 15.000 PSI
WORKING TEMPERATURE 250°F
SERVICES H2S
STANDARD NACE MR0175
VALVE TYPES PLUG
CHOKE TYPES ADJUSTABLE AND POSITIVE
INLET 3” FIG 1502
OUTLET 3” FIG 1502

Flow Head

Type FHT-G
Design Pressure: 5000 Psi, 10000 Psi & 15.000 Psi
Service H2S (Fluid Class DD)
Temperature (ºF [ºC]) : 4 to 250,320
ID (in. [mm]) : (31/16 [78])
Connection
Bottom 3½ IF
Flow line 3½ in. Fig 1502 M
Kill line 3½ in. Fig 1502 F
Swab (gate) valve ID (in. [mm]) 31/16 (78)
Master (gate) valve ID (in. [mm]) 31/16 (78)
Height (ft [m]) 12.5 (3.80)
Width (ft [m]) 3.6 (1.10)
Length (ft [m]) 3.6 (1.10)
Weight (lbm [kg]) 4994 (2270)
Skid dimensions (ft [m]) (14.43 x 5.25 [4.40 x1.60])
Skid weight (lbm [kg]) (2204.58 [1000])

Three Phase Separator

Design Temperature    200 F
Design Pressure          150 psig
Design Temperature    200 F
Design Pressure          300 psig
Design Temperature    20F
Design Pressure          600 psig
Design Temperature    200 F
Design Pressure          1440 psig

Dimensions

36” OD x 9’ S/S
36” OD x 12’ S/S
36” OD x 13’ S/S
42” OD x 10’ S/S
42” OD x 15’ S/S
50” OD x 15’ S/S
62” OD x 14’ S/S
72” OD x 22’ S/S
82” OD x 22’ S/S
94” OD x 24’ S/S

Flow Head

Type FHT-G
Design Pressure: 5000 Psi, 10000 Psi & 15.000 Psi
Service H2S (Fluid Class DD)
Temperature (ºF [ºC]) : 4 to 250,320
ID (in. [mm]) : (31/16 [78])
Connection
Bottom 3½ IF
Flow line 3½ in. Fig 1502 M
Kill line 3½ in. Fig 1502 F
Swab (gate) valve ID (in. [mm]) 31/16 (78)
Master (gate) valve ID (in. [mm]) 31/16 (78)
Height (ft [m]) 12.5 (3.80)
Width (ft [m]) 3.6 (1.10)
Length (ft [m]) 3.6 (1.10)
Weight (lbm [kg]) 4994 (2270)
Skid dimensions (ft [m]) (14.43 x 5.25 [4.40 x1.60])
Skid weight (lbm [kg]) (2204.58 [1000])

Flow Head

Type FHT-G
Design Pressure: 5000 Psi, 10000 Psi & 15.000 Psi
Service H2S (Fluid Class DD)
Temperature (ºF [ºC]) : 4 to 250,320
ID (in. [mm]) : (31/16 [78])
Connection
Bottom 3½ IF
Flow line 3½ in. Fig 1502 M
Kill line 3½ in. Fig 1502 F
Swab (gate) valve ID (in. [mm]) 31/16 (78)
Master (gate) valve ID (in. [mm]) 31/16 (78)
Height (ft [m]) 12.5 (3.80)
Width (ft [m]) 3.6 (1.10)
Length (ft [m]) 3.6 (1.10)
Weight (lbm [kg]) 4994 (2270)
Skid dimensions (ft [m]) (14.43 x 5.25 [4.40 x1.60])
Skid weight (lbm [kg]) (2204.58 [1000])

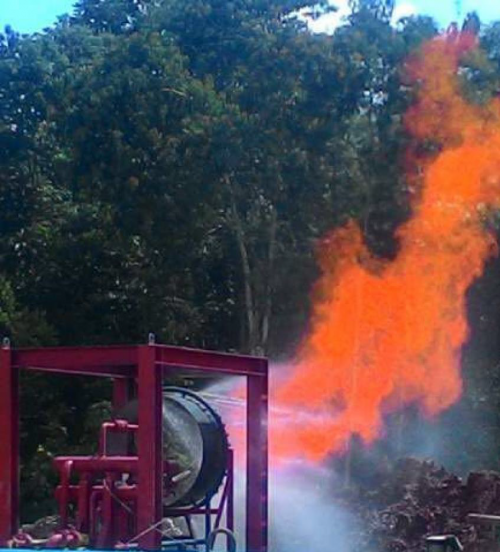

Three Head Burner

OIL
Flow Rate 5,000 BOPD 636
1907 m3/d
Maximum Working Pressure 1440 PSI 9928 kPa
Test Pressure 2160 PSI 14892 kPa

AIR
Nominal Flow Rate 750 scf/min 127 m3/min
Maximum Working Pressure 750 PSI 5171 kPa
Test Pressure 1125 PSI 7756 kPa

TEMPERATURE RATING
-20 F to 250 F ( 29 C to 149 C)

DIMENSIONS (approx.)
Length x Width x Height 5.45 x 6.56 x 5.51(
ft ) 1660 x 2000 x 1680 (
Weight (estimate with transportation frame) 2640 lbs 1200 kg
Standards NACE MR01
75, ASME B31.3 & DNV 2.7.1

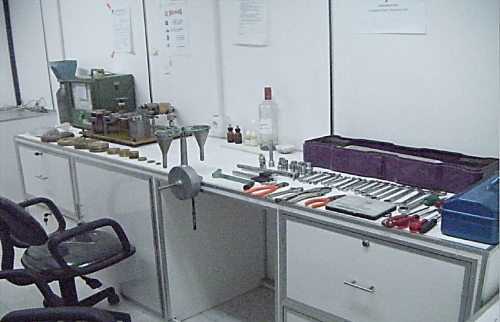

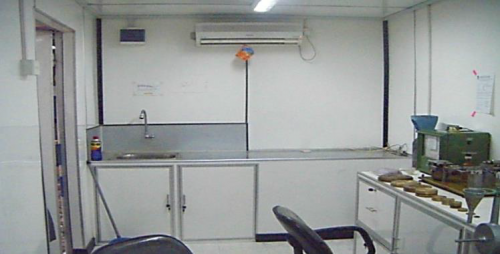

Laboratory

LABORATORY EQUIPMENT INCLUDES:

Deadweight tester 50 to 10,000 psi.
An adequate quantity and range of calibrated Bourdon tube
pressure gauges.
Range of calibrated thermometers.
Calibrated
Dreager sniffer with range of tubes to measure H2S
and CO2.
Portable gas gravity balance
Ranarex
Full range of hydrometers with measuring flask.
Hand centrifuge to measure the BS&W.
Refractometer or system to measure Chlorides / Salinity test
kit for water analysis.
Pressure test chart recorder.
Barton chart recorder (2 set), range 0
5,000 psi and range 0
10,000 psi.
Portable radios c/w charger for use in Zone II
enviroment
Supply of Barton pressure recorder charts.
Hand well test calculation and reporting sheets.
Comprehensive supply of spare parts, fittings, liners etc.
Comprehensive set of hand tools.

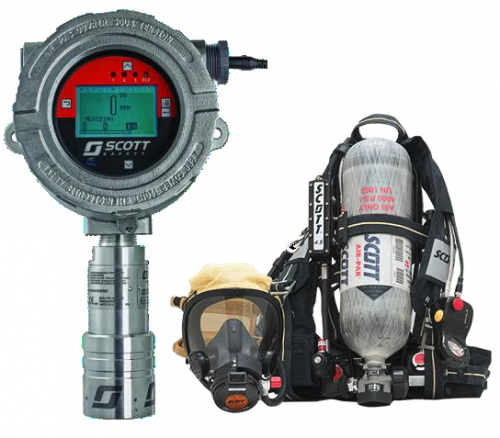

H2S Equipment

50’ Breathing Air Hose, 3/8” dia. w/Rectus style Coupler and Plug (LP)
100’ Air Breathing Hose, 3/8” dia., w/ Rectus style Coupler and Plug (HP)
Hand Held Portable H2S detector Brand :Kitagawa
Tube Detector Kitagawa
Wind Sock only 5 feet orange
H2S Danger Sign Caution Poison Gas Safe Briefing Area
Oxygen Resuscitator c/w spare cylinder
Stretcher
Safety Belt c/w 100 ft non nylon rope
Pelican Rack c/w of 6 units of 45 cu ft Carbon Cylinder for use SCBA
First Aid Kit for 50 person
Megaphone complete with sirene Brand : TOA
Power Cable 3 Core x 2,5 (100m/roll ) for Sirene and Strobe Lamp
Power Cable 3 Core x 2,5” (100m/roll ) for unit Container
Power Cable 6 x 4 Core (100m/roll) for 2 Bug Blower and 1 Electric Compressor
Multi Core PVC Screened Cable 12 Core x 1,5 (100m/roll) for Gas Detector
Power Cable 3 Core x 1,5” (50 m/roll) for Gas Detector

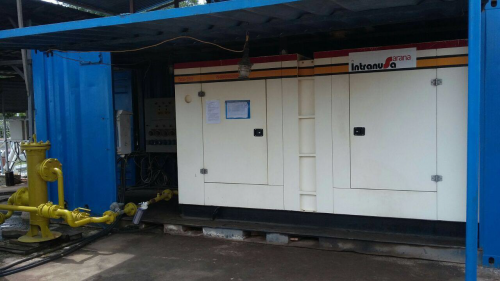

Generator Set

PRIME MOVER :
Gas Engine
Diesel Engine

CAPACITY :
5kVA
10kVA
20kVA
50kVA
100kVA
500kVA
600kVA

BRAND :
Yanmar, Perkins, Caterpillar, Doosan, Cummin, ProMAC
